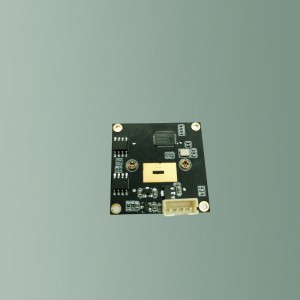

2MP 1080P Low Light Low Distortion USB Camera Module with 1/2.8″ CMOS IMX291 UVC USB2.0 Webcam Board with 1.5M Cable for industrial machine vision

Short Description:

MODEL:RYS-2291S1

This USB Camera Module Main Features:

2MP, Low Illumination, 1920*1080, 30fps, 1/2.8″IMX291, Night Vision, no distortion lens , Fixed foucs

This USB Camera Module Main Applications:

Non highspeed industrial camera applications, and more.

This Camera Module (size, hardware, firmware) can be modified or further developed based on your project requirements.

Send email to us

Product Detail

FAQ

Product Tags

TECHNICAL SPECIFICATIONS

Model:	RYS-2291S1
Main Features:	*2MP, Low Illumination, 19201080, 30fps, 1/2.8"IMX291, Night Vision, no distortion lens , Fixed foucs**
Main Applications:	Non high speed industrial camera
Resolution & FPS:	MJPEG: 1920x1080@ 30fps/ 640x480@ 30fps YUY2: 1920x1080@ 3fp/ 640x480@ 30fps
Sensor Type:	1/2.8”
Picture Format:	YUY2/MJPG
FOV:	110 degree
Frame Rate:	30fps
Connecting Port Type:	USB2.0
Shutter Type:	Electronic rolling shutter/Frame Exposure
Audio:	High quality digital mic, single choice, dual channel
Lens Parameter:	2.1mm/2.8mm/2.9mm/3.6mm/3.7mm/6mm/8mm/12mm/No distortion/Fisheye 170 degree, 180 Degree
Cable:	Standard 1.5M / Can be customized
Board Size:	38*38mm / can be customized
Dynamic Range:	76DB
Max. Resolution:	1920*1080
Pixel Size:	3.0um*3.0um
Focus:	Fixed focus
Current:	MAX 300mA
Support Free Driver:	USB Video Class(UVC)
AEC:	Support
AEB/AGC:	Support
Adjustable Parameters:	Brightness/Contrast/Saturation/Hue/Sharpness/Gamma/Exposure white balance/Backlight/contrast
Work Temperature:	Degrees(-20~70)
Certifications:	FCC and CE
Power supply:	DC 5V
Operating Request:	WinXP/Vista/Win7/Win8/Linux with UVC(above Linux-2.6.26) Mac-OS X 10.4.8 or later/Android 4.0 or above with UVC

Previous: 2MP Global Shutter COLOR USB Webcam Module 60fps 1600*1200/720P wide angle lens USB Webcam 1/2.9″ MK02B Sensor video output for Industrial Machine Vision

Next: 16MP High Resolution USB Camera with 1/2.8″ CMOS Sensor, 10fps UVC USB2.0 Video Webcam for industrial machine vision with wide angle lens, Microphones, Cables.

Q: What is the difference between you(Source Factory) and Trade company?
A: Source factory has its own advance equipments, production line, and workers.
Generally speaking, trade company do not have, and source factories are the supplier of trade company.
It would be more cost-saving for you to buy directly from source factory.

Q: What is your production leadtime?
A: If our off-the-shelf Camera module can meet your expectations, 1-2 days for sample order.
If development is needed, 15-20 days for sample order.
For normal bulk order production run, it is about 20-30 days.

Q: You are supporting USB camera second-development, Can you specify?
A: We can offer Linux, Windows, Android SDK, Camera digital microphones etc.

Q: What information I need to provide to you if I want to customize a Camera module?
A: 1). Module Type(Monocular/Binocular/Trinocular)?
2). Pixel：0.3MP/1MP/2MP/5MP/8MP/12MP/16MP
3). Chip Brand: OV/AR/IMX/GC/SC/HM…
4). View Angle: 20°-230°
5). Interface: USB drive free(Standard UVC Protocol)/MIPI/DVP
6). Board size(32*32cm/38*38cm/others)?
7). Focus(Auto/manual/fixed)?
8). If need to fill Light(white light/infrared light)?
9). Wire length(1.5M/2M/3M/5M/others)?
10). Other features(Microphone/Wide Dynamic/Global Shutter/Face Recognition)?

Q: What operating system your cameras support?
A: WinXP/Vista/Win7/Win8/Raspberry Pi/Linux Ubuntun/Linux with UVC(above Linux-2.6.26)/
Mac-OS X 10.4.8 or later/Android 4.0 or above with UVC

Q: Does your camera support OTG?
A: Well, most of our usb cameras support OTG, except 0.3MP USB3.0 series and 5MP OV5640 USB cameras.

Q: Could you let me know what softwares your usb camera module support?
A: Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,
V4L2 video for Linux, Camerafi, VLC Player

Q: What is your guarantee police?
A: 1). Strictly performing quality management system standards in Production, 100% inspection before shipment.
2). Free replacements for defective modules within one year.
3). Free repair service for defective modules after 1 year.

Q: What certifications do you have for your USB Camera?
A: CE, RoHs, FCC, and Appearance patents.

2MP CMOS IMX291 camera
