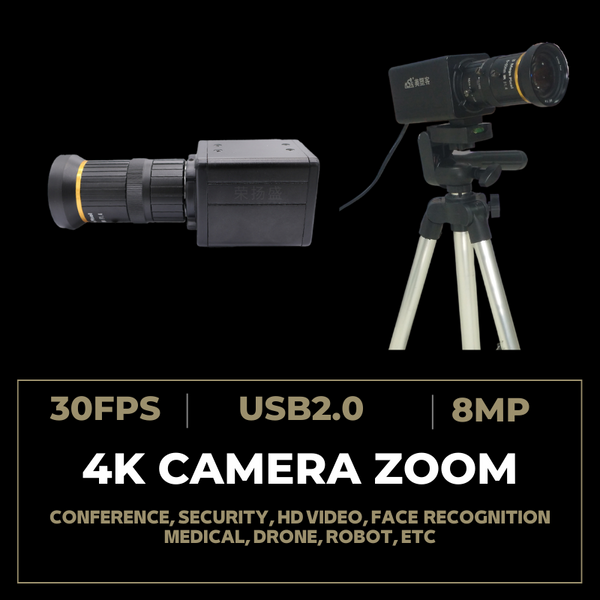

8MP 4K Remote Control USB Camera with 1/2.8″ IMX415 Sensor, support 3840X2160 30fps USB2.0 high speed video output, for Live Demo, Web Conferencing, Distance Learning, Remote Teaching

Short Description:

MODEL:RYS-4K-3821.CAMERA

This USB Camera Main Features:

4K, 8MP, 3840*2160, 1/2.8″IMX415, No distortion lens, Fixed Focus, 30fps, ZOOM function.

This USB Camera Main Applications:

4K Camera, and more.

This Camera Module (size, hardware, firmware) can be modified or further developed based on your project requirements.

Send email to us

Product Detail

FAQ

Product Tags

TECHNICAL SPECIFICATIONS

Model:	RYS-4K-3821
Main Features:	*4K, 8MP, 38402160, 1/2.8"IMX415, No distortion lens, Fixed Focus, 30fps**
Main Applications:	4K Camera
Resolution & FPS:	YUV/MJPGE 38402160 ：30FPS 25921944 20481536 19201080 16001200 1280960 1280720 1024768 800600 640480 320*240
Sensor Type:	1/2.8
Max. Resolution:	3840*2160
Maximum Image Transfer Rate:	30FPS 8M
F/No:	2.4
FOV:	90
Optical Distortion:	<12
Connecting Port Type:	USB2.0 High Speed
Shutter Type:	Electronic rolling shutter/Frame Exposure
Remote Control Function:	1. Flip 4 directions 2 pause Video 3 Take photos 4 AF / FF switching 5 Zoom in and out 6 Image zoom in and out 7 Fine adjustment of front, rear, left and right image positions
Picture Format:	H264/MJPEG/YUV2(YUYV)
Lens Parameter:	2.1mm/2.8mm/2.9mm/3.6mm/3.7mm/6mm/8mm/12mm/No distortion/Fisheye/170 degree/180 degree
Cable:	Standard 1.5M / Can be customized
Board Size:	38*38mm / can be customized
Fixed Pattern Noise:	< 0.03% of VPEAK-TO-PEAK
Sensor:	IMX415
Pixel Size:	3µm x3µm
TTL:	15.8
Focus:	5x remote zoom
TV Distortion:	<1%
IR Filter:	650±10nm
Support Free Driver:	USB Video Class(UVC)
AEC:	Support
AEB:	Support
AGC:	Support
Adjustable Parameters:	Brightness/Contrast/Saturation/Hue/Sharpness/Gamma/Exposure white balance/Backlight/contrast（ Auto）
Work Temperature:	Degrees(-20~70)
Certifications:	FCC and CE
Power supply:	DC 5V
Operating Request:	WinXP/Vista/Win7/Win8/Linux with UVC(above Linux-2.6.26) Mac-OS X 10.4.8 or later/Android 4.0 or above with UVC

Previous: 2MP full HD 1080P IR CUT Webcam Module, day&night Web Camera Module with CMOS 1/2.7″ 4231B Sensor, USB2.0 High speed 60fps HDR Web Cam Module

Next: 4K 8MP USB Camera with 1/2.5″IMX317 Image Sensor, 3840*2160 Webcam for Pro Streaming/Online Teaching/Video Calling/Zoom/Skype

Q: What is the difference between you(Source Factory) and Trade company?
A: Source factory has its own advance equipments, production line, and workers.
Generally speaking, trade company do not have, and source factories are the supplier of trade company.
It would be more cost-saving for you to buy directly from source factory.

Q: What is your production leadtime?
A: If our off-the-shelf Camera module can meet your expectations, 1-2 days for sample order.
If development is needed, 15-20 days for sample order.
For normal bulk order production run, it is about 20-30 days.

Q: You are supporting USB camera second-development, Can you specify?
A: We can offer Linux, Windows, Android SDK, Camera digital microphones etc.

Q: What information I need to provide to you if I want to customize a Camera module?
A: 1). Module Type(Monocular/Binocular/Trinocular)?
2). Pixel：0.3MP/1MP/2MP/5MP/8MP/12MP/16MP
3). Chip Brand: OV/AR/IMX/GC/SC/HM…
4). View Angle: 20°-230°
5). Interface: USB drive free(Standard UVC Protocol)/MIPI/DVP
6). Board size(32*32cm/38*38cm/others)?
7). Focus(Auto/manual/fixed)?
8). If need to fill Light(white light/infrared light)?
9). Wire length(1.5M/2M/3M/5M/others)?
10). Other features(Microphone/Wide Dynamic/Global Shutter/Face Recognition)?

Q: What operating system your cameras support?
A: WinXP/Vista/Win7/Win8/Raspberry Pi/Linux Ubuntun/Linux with UVC(above Linux-2.6.26)/
Mac-OS X 10.4.8 or later/Android 4.0 or above with UVC

Q: Does your camera support OTG?
A: Well, most of our usb cameras support OTG, except 0.3MP USB3.0 series and 5MP OV5640 USB cameras.

Q: Could you let me know what softwares your usb camera module support?
A: Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,
V4L2 video for Linux, Camerafi, VLC Player

Q: What is your guarantee police?
A: 1). Strictly performing quality management system standards in Production, 100% inspection before shipment.
2). Free replacements for defective modules within one year.
3). Free repair service for defective modules after 1 year.

Q: What certifications do you have for your USB Camera?
A: CE, RoHs, FCC, and Appearance patents.

3840X2160 30fps web camera 4K
